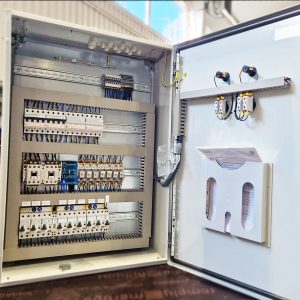

AAR Electrical Panel – Automatic Reserve Switching

⚡ The AAR-type electrical panel is a fundamental piece of equipment for ensuring continuity of power supply, performing automatic switching between the main source and a backup source. This system is designed to respond rapidly in the event of voltage drops or significant deviations in the parameters of the main grid, guaranteeing uninterrupted operation for critical loads.

🔄 Automatic Operation

The panel continuously monitors the parameters of the main grid — voltage, frequency, and phase sequence — and automatically initiates transfer to the alternate source upon detecting anomalies. Reversion to the main source can be configured to occur either automatically or manually, depending on the selected operational scenario.

This automation eliminates the need for human intervention during critical moments, ensuring seamless continuity of supply.

🛠️ Standard Components

An AAR panel is equipped with the following components:

• Motorized circuit breakers or interlocked contactors
• Monitoring relays for grid parameters (voltage, frequency, phase sequence)
• Automation units (PLC or ATS – Automatic Transfer Switch)
• Electrical protections for safety and reliability
• Auxiliary power sources for control circuits
• Visual signaling and communication elements (lamps, buzzer, digital interfaces)

All components are integrated into a robust, safe, and easy-to-maintain architecture.

📏 Norms and Standards

AAR panels are designed in compliance with the most stringent international and national standards, ensuring optimal performance and safety:

• SR EN 61439 – Low-voltage switchgear and controlgear assemblies
• IEC 60947-6-1 – Automatic transfer switching equipment
• IEC 60364 – Electrical installations of buildings
• National regulations I7/2011 and PE 107/2019

🏢 Application Domains

AAR panels are indispensable in scenarios where power continuity is critical, being deployed in:

🏥 Hospitals and medical centers
💾 Data centers and server rooms
🏢 Office buildings and administrative headquarters
🏭 Sensitive industrial processes
🏙️ Public infrastructure and utilities

🚀 Implementing an AAR panel ensures a superior level of safety and reliability, protecting sensitive equipment and maintaining operations under all conditions, without interruption.
